Build applicatiosn that interact with the Keplr browser extension.
In this section, you will learn more about:
Detecting Keplr.
Getting chain information.
Working with the user interaction flow.
CosmJS allows you to connect with Keplr(opens new window), the widely used browser extension, to manage your private keys. In a previous section you used the command-line and CosmJS to issue commands to the Cosmos Hub Testnet. In this tutorial, you are working on a browser application that interacts with the Keplr extension.
You will again connect to the Cosmos Hub Testnet. Optionally, connect to your locally running Cosmos blockchain using simapp as explained before.
To keep the focus on CosmJS and Keplr, you are going to use ready-made pages created by the Next.js framework. Do not worry if you routinely use another framework, the CosmJS-specific code in this tutorial can be applied similarly in Angular, Vue, and other frameworks.
In your project folder create the ready-made Next.js app, which automatically places it in a subfolder for you. This follows the docs(opens new window):
Copy
$ npx create-next-app@latest --typescript
Which guides you with:
Copy
...
? What is your project named? › cosmjs-keplr
This created a new cosmjs-keplr folder. There you can find a /pages folder, which contains an index.tsx. That's your first page.
Run it, in the cosmjs-keplr folder:
Copy
$ npm run dev
Which returns:
Copy
ready - started server on 0.0.0.0:3000, url: http://localhost:3000
...
The goal of the exercise is to find token balances, yours and the faucet's, and then send some tokens back to the faucet. Before introducing any CosmJS, you can already create a React component that includes the basic user interface that you need. By convention, create a /components folder and then copy the following code inside a new file called FaucetSender.tsx:
Copy
import{ ChangeEvent, Component, MouseEvent }from"react"import styles from'../styles/Home.module.css'interfaceFaucetSenderState{
denom:string
faucetBalance:string
myAddress:string
myBalance:string
toSend:string}exportinterfaceFaucetSenderProps{
faucetAddress:string
rpcUrl:string}exportclassFaucetSenderextendsComponent<FaucetSenderProps, FaucetSenderState>{// Set the initial stateconstructor(props:FaucetSenderProps){super(props)this.state ={
denom:"Loading...",
faucetBalance:"Loading...",
myAddress:"Click first",
myBalance:"Click first",
toSend:"0",}}// Store changed token amount to stateonToSendChanged=(e: ChangeEvent<HTMLInputElement>)=>this.setState({
toSend: e.currentTarget.value
})// When the user clicks the "send to faucet button"onSendClicked=async(e: MouseEvent<HTMLButtonElement>)=>{alert("TODO")}// The render function that draws the component at init and at state changerender(){const{ denom, faucetBalance, myAddress, myBalance, toSend }=this.state
const{ faucetAddress }=this.props
console.log(toSend)// The web page structure itselfreturn<div><fieldset className={styles.card}><legend>Faucet</legend><p>Address:{faucetAddress}</p><p>Balance:{faucetBalance}</p></fieldset><fieldset className={styles.card}><legend>You</legend><p>Address:{myAddress}</p><p>Balance:{myBalance}</p></fieldset><fieldset className={styles.card}><legend>Send</legend><p>To faucet:</p><input value={toSend} type="number" onChange={this.onToSendChanged}/>{denom}<button onClick={this.onSendClicked}>Send to faucet</button></fieldset></div>}}
The properties of FaucetSender.tsx only contain the things it knows at build time. It keeps a state, and this state is either updated by the user or after a fetch. It reuses a default style you can find in /styles.
The component is still unused. You do not need the default page that comes with create-next-app, so you can replace the contents of index.tsx with the following code that imports the new component:
Copy
importtype{ NextPage }from'next'import{ FaucetSender }from'../components/FaucetSender'const Home:NextPage=()=>{return<FaucetSender
faucetAddress="cosmos15aptdqmm7ddgtcrjvc5hs988rlrkze40l4q0he"
rpcUrl="https://rpc.sentry-01.theta-testnet.polypore.xyz"/>}exportdefault Home
The faucet address was found in the previous section, as well as the RPC endpoint that connects to the Cosmos Hub Testnet.
When npm run dev picks up the changes, you should see that your page has changed to what you created. In particular, it alerts you with "TODO" when you click on the button.
Your page is not very useful yet, make it more so.
When building a user interface, it is good practice to not ask your user's address until it becomes necessary (e.g. if they click a relevant button). You should start by showing information that is knowable without user input. In this case, this is the token denom (denomination) and the faucet's balance. Add the following function that gets the balance from the faucet and place it above the onToSendChanged function inside FaucetSender.tsx:
Copy
// Get the faucet's balanceupdateFaucetBalance=async(client: StargateClient)=>{const balances:readonly Coin[]=await client.getAllBalances(this.props.faucetAddress)const first: Coin = balances[0]this.setState({
denom: first.denom,
faucetBalance: first.amount,})}
Note that it only cares about the first coin type stored in balances[0]: this is to keep the exercise simple, but there could be multiple coins in that array of balances. It extracts the denom, which is then displayed to the user as the unit to transfer. Add the denom that in the constructor as well so that it runs on load via another specific function:
Refer to the previous section on how to get Cosmos Hub Testnet tokens. This time you should use your Keplr address. If you have not set up one yet, do so now. Your Cosmos Hub Testnet address is the same one that Keplr shows you for the Cosmos Hub mainnet.
Following Keplr's documentation(opens new window), it is time to add a function to see if Keplr is installed on the browser. For convenience and type hinting, install the Typescript Keplr types from within the folder of your project:
Copy
$ npm install @keplr-wallet/types --save-dev
After this package is installed, inform Typescript that window may have a .keplr field with the help of this helper(opens new window), by adding it below your imports to FaucetSender.tsx:
Copy
import{ Window as KeplrWindow }from"@keplr-wallet/types";declare global {interfaceWindowextendsKeplrWindow{}}
Detecting Keplr can be done at any time, but to keep the number of functions low for this exercise do it in onSendClicked. You want to avoid detecting Keplr on page load if not absolutely necessary. This is generally considered bad user experience for users who might just want to browse your page and not interact with it. Replace the onSendClicked with the following:
Copy
onSendClicked=async(e: MouseEvent<HTMLButtonElement>)=>{const{ keplr }= window
if(!keplr){alert("You need to install Keplr")return}}
Hopefully, when you click on the button it does not show an alert. It does not do anything else either. As an optional confirmation, if you disable Keplr from Chrome's extension manager, when you click the button the page tells you to install it.
Keplr is now detected. By default, Keplr lets its users only connect to the blockchains it knows about. Unfortunately, the Cosmos Hub Testnet is not one of them, but there is a feature where you can instruct it to handle any Cosmos blockchain, provided you give its parameters. Here is an example(opens new window). In the case of Cosmos Hub Testnet, these parameters are available, as mentioned on the testnet page(opens new window). Add a new function for them as shown in the expandable box:
You need to add another import from the @keplr-wallet package so that your script understands what ChainInfo is:
Copy
import{ ChainInfo, Window as KeplrWindow }from"@keplr-wallet/types"
Note that it mentions the chainId: "theta-testnet-001". In effect, this adds the Cosmos Hub Testnet to Keplr's registry of blockchains, under the label theta-testnet-001. Whenever you want to prompt the user to add the Cosmos Hub Testnet to Keplr, add the line:
This needs to be done once, which in this case is in the onSendClicked function after having detected Keplr, but repeating the line elsewhere is generally not a problem.
Keplr is now detected and prepared. Now try to do something useful with the user's information.
In onSendClicked, similar to the previous section, you can:
Prepare Keplr, with keplr.experimentalSuggestChain.
Get the signer for your user's accounts, with KeplrWindow's window.getOfflineSigner.
Create your signing client.
Get the address and balance of your user's first account.
Send the requested coins to the faucet.
Inform and update.
In practice, the code for onSendClicked looks like this:
Copy
onSendClicked=async(e: MouseEvent<HTMLButtonElement>)=>{// Detect Keplrconst{ keplr }= window
if(!keplr){alert("You need to install Keplr")return}// Get the current state and amount of tokens that we want to transferconst{ denom, toSend }=this.state
const{ faucetAddress, rpcUrl }=this.props
// Suggest the testnet chain to Keplrawait keplr.experimentalSuggestChain(this.getTestnetChainInfo())// Create the signing clientconst offlineSigner: OfflineSigner =
window.getOfflineSigner!("theta-testnet-001")const signingClient =await SigningStargateClient.connectWithSigner(
rpcUrl,
offlineSigner,)// Get the address and balance of your userconst account: AccountData =(await offlineSigner.getAccounts())[0]this.setState({
myAddress: account.address,
myBalance:(await signingClient.getBalance(account.address, denom)).amount,})// Submit the transaction to send tokens to the faucetconst sendResult =await signingClient.sendTokens(
account.address,
faucetAddress,[{
denom: denom,
amount: toSend,},],{
amount:[{ denom:"uatom", amount:"500"}],
gas:"200000",},)// Print the result to the consoleconsole.log(sendResult)// Update the balance in the user interfacethis.setState({
myBalance:(await signingClient.getBalance(account.address, denom)).amount,
faucetBalance:(await signingClient.getBalance(faucetAddress, denom)).amount,})}
Keplr is only tasked with signing transactions. The transactions are broadcast with the RPC endpoint of your choice.
Now run the full script. In the refreshed page, enter an amount of uatom (for example 1000000) and click Send to faucet. A number of events happen:

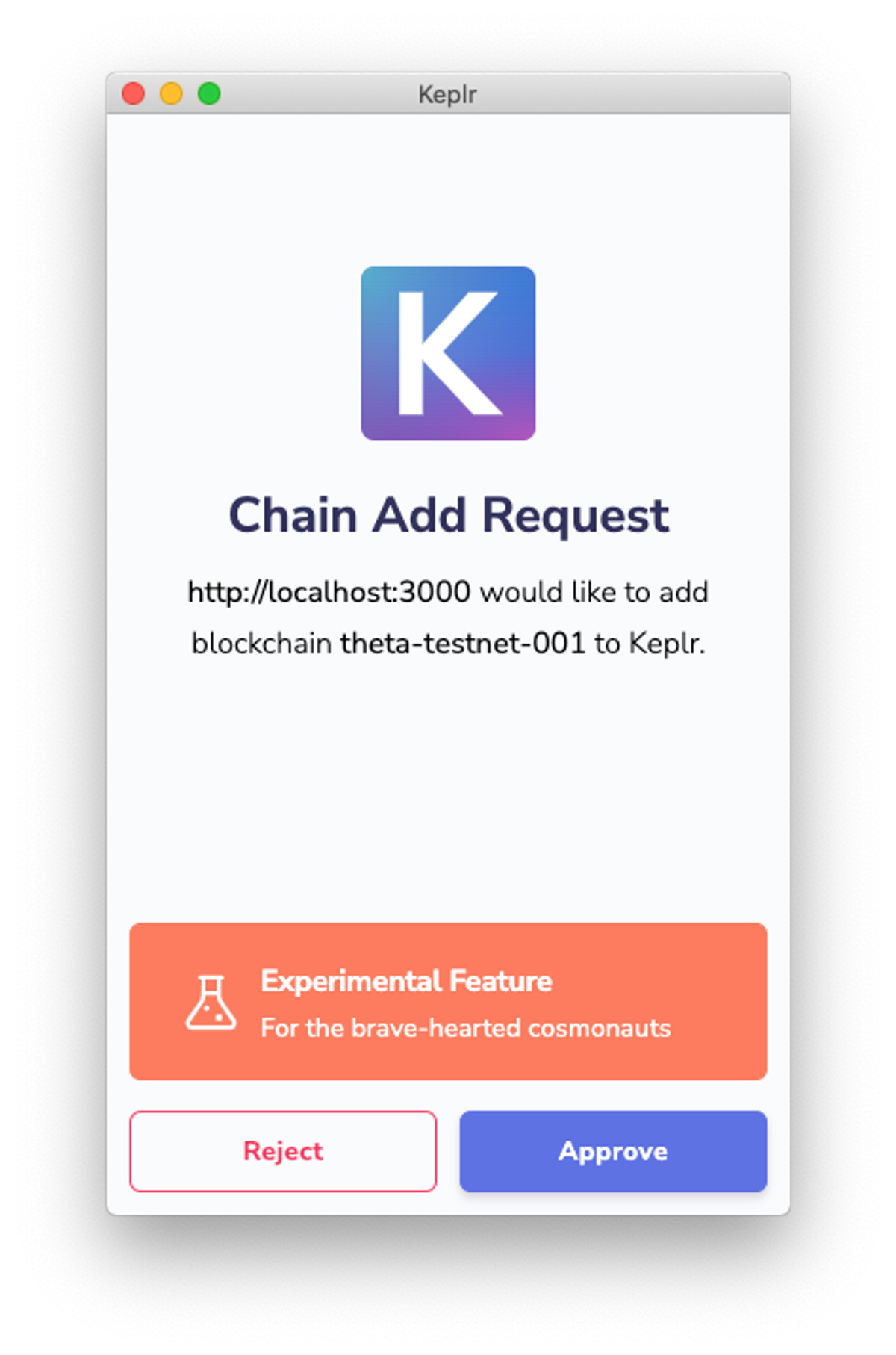

Keplr asks for confirmation that you agree to add the testnet network. It does not install any network without your approval, as that would be a security risk. It asks this only the first time you add a given network, which is why doing it in onSendClicked is harmless.

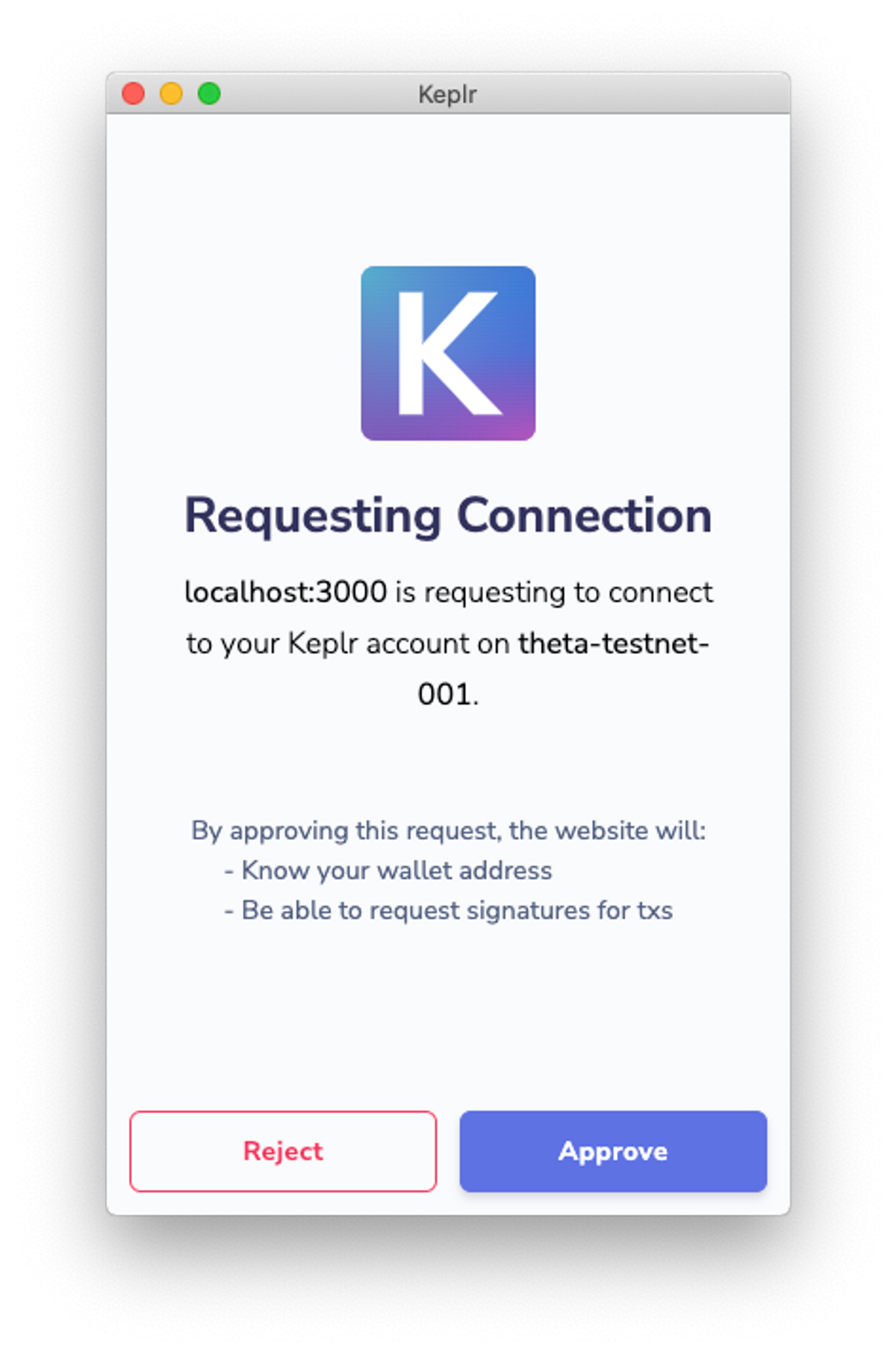

Keplr asks whether you agree to share your account information, because this involves a potential security risk. Again, it asks this only once per web page + network combination.
Your address and balance fields are updated and visible.

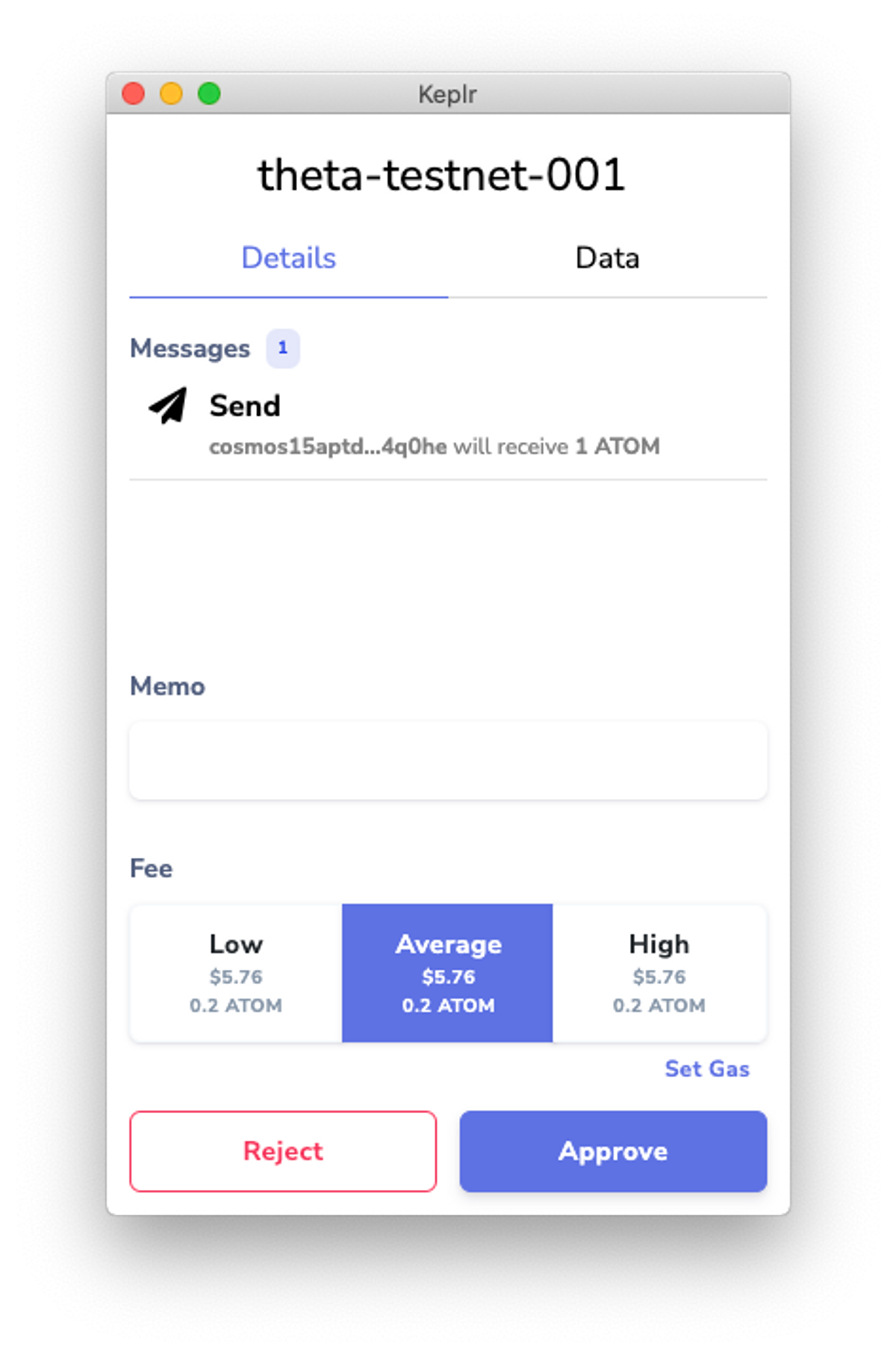

Keplr asks whether you agree to sign the transaction, a very important action that requires approval every time.
After this is done, your balance updates again, and in the browser console you see the transaction result.
If you want to double check if you got everything right, you can find the full component's code in the expandable box below:
Copy
import{ Coin, SigningStargateClient, StargateClient }from"@cosmjs/stargate"import{ AccountData, OfflineSigner }from"@cosmjs/proto-signing"import{ ChainInfo, Window as KeplrWindow }from"@keplr-wallet/types"import{ ChangeEvent, Component, MouseEvent }from"react"import styles from"../styles/Home.module.css"declare global {interfaceWindowextendsKeplrWindow{}}interfaceFaucetSenderState{
denom:string
faucetBalance:string
myAddress:string
myBalance:string
toSend:string}exportinterfaceFaucetSenderProps{
faucetAddress:string
rpcUrl:string}exportclassFaucetSenderextendsComponent<
FaucetSenderProps,
FaucetSenderState
>{// Set the initial stateconstructor(props: FaucetSenderProps){super(props)this.state ={
denom:"Loading...",
faucetBalance:"Loading...",
myAddress:"Click first",
myBalance:"Click first",
toSend:"0",}setTimeout(this.init,500)}// Connecting to the endpoint to fetch the faucet balanceinit=async()=>this.updateFaucetBalance(await StargateClient.connect(this.props.rpcUrl),)// Get the faucet's balanceupdateFaucetBalance=async(client: StargateClient)=>{const balances:readonly Coin[]=await client.getAllBalances(this.props.faucetAddress,)const first: Coin = balances[0]this.setState({
denom: first.denom,
faucetBalance: first.amount,})}// Store changed token amount to stateonToSendChanged=(e: ChangeEvent<HTMLInputElement>)=>this.setState({
toSend: e.currentTarget.value,})// When the user clicks the "send to faucet button"onSendClicked=async(e: MouseEvent<HTMLButtonElement>)=>{// Detect Keplrconst{ keplr }= window
if(!keplr){alert("You need to install Keplr")return}// Get the current state and amount of tokens that we want to transferconst{ denom, toSend }=this.state
const{ faucetAddress, rpcUrl }=this.props
// Suggest the testnet chain to Keplrawait keplr.experimentalSuggestChain(this.getTestnetChainInfo())// Create the signing clientconst offlineSigner: OfflineSigner =
window.getOfflineSigner!("theta-testnet-001")const signingClient =await SigningStargateClient.connectWithSigner(
rpcUrl,
offlineSigner,)// Get the address and balance of your userconst account: AccountData =(await offlineSigner.getAccounts())[0]this.setState({
myAddress: account.address,
myBalance:(await signingClient.getBalance(account.address, denom)).amount,})// Submit the transaction to send tokens to the faucetconst sendResult =await signingClient.sendTokens(
account.address,
faucetAddress,[{
denom: denom,
amount: toSend,},],{
amount:[{ denom:"uatom", amount:"500"}],
gas:"200000",},)// Print the result to the consoleconsole.log(sendResult)// Update the balance in the user interfacethis.setState({
myBalance:(await signingClient.getBalance(account.address, denom)).amount,
faucetBalance:(await signingClient.getBalance(faucetAddress, denom)).amount,})}// The Cosmos Hub Testnet chain parameters
getTestnetChainInfo =(): ChainInfo =>({
chainId:"theta-testnet-001",
chainName:"theta-testnet-001",
rpc:"https://rpc.sentry-01.theta-testnet.polypore.xyz/",
rest:"https://rest.sentry-01.theta-testnet.polypore.xyz/",
bip44:{
coinType:118,},
bech32Config:{
bech32PrefixAccAddr:"cosmos",
bech32PrefixAccPub:"cosmos"+"pub",
bech32PrefixValAddr:"cosmos"+"valoper",
bech32PrefixValPub:"cosmos"+"valoperpub",
bech32PrefixConsAddr:"cosmos"+"valcons",
bech32PrefixConsPub:"cosmos"+"valconspub",},
currencies:[{
coinDenom:"ATOM",
coinMinimalDenom:"uatom",
coinDecimals:6,
coinGeckoId:"cosmos",},{
coinDenom:"THETA",
coinMinimalDenom:"theta",
coinDecimals:0,},{
coinDenom:"LAMBDA",
coinMinimalDenom:"lambda",
coinDecimals:0,},{
coinDenom:"RHO",
coinMinimalDenom:"rho",
coinDecimals:0,},{
coinDenom:"EPSILON",
coinMinimalDenom:"epsilon",
coinDecimals:0,},],
feeCurrencies:[{
coinDenom:"ATOM",
coinMinimalDenom:"uatom",
coinDecimals:6,
coinGeckoId:"cosmos",},],
stakeCurrency:{
coinDenom:"ATOM",
coinMinimalDenom:"uatom",
coinDecimals:6,
coinGeckoId:"cosmos",},
coinType:118,
gasPriceStep:{
low:1,
average:1,
high:1,},
features:["stargate","ibc-transfer","no-legacy-stdTx"],})// The render function that draws the component at init and at state changerender(){const{ denom, faucetBalance, myAddress, myBalance, toSend }=this.state
const{ faucetAddress }=this.props
// The web page structure itselfreturn(<div><fieldset className={styles.card}><legend>Faucet</legend><p>Address:{faucetAddress}</p><p>Balance:{faucetBalance}</p></fieldset><fieldset className={styles.card}><legend>You</legend><p>Address:{myAddress}</p><p>Balance:{myBalance}</p></fieldset><fieldset className={styles.card}><legend>Send</legend><p>To faucet:</p><input
value={toSend}
type="number"
onChange={this.onToSendChanged}/>{" "}{denom}<button onClick={this.onSendClicked}>Send to faucet</button></fieldset></div>)}}
What if you wanted to experiment with your own chain while in development?
Keplr does not know about locally running chains by default. As you did with Cosmos Hub Testnet, you must inform Keplr about your chain: change ChainInfo to match the information about your chain, and change rpcUrl so that it points to your local port.
