Connections

If you want to connect two blockchains with IBC, you will need to establish an IBC connection. Connections, established by a four-way handshake, are responsible for:

1. Establishing the identity of the counterparty chain.
2. Preventing a malicious entity from forging incorrect information by pretending to be the counter party chain. IBC connections are established by on-chain ledger code and therefore do not require interaction with off-chain (trusted) third-party processes.

The connection semantics are described in ICS-3 (opens new window).

In the IBC stack, connections are built on top of clients, so technically there could be multiple connections for each client if the client is interacting with multiple versions of the IBC protocol. For now, the setup should connote one connection for each client.

Version negotiation

Note that versioning here refers to the IBC protocol spec and not the ibc-go module. A backwards incompatible update is currently not planned.

Copy // Version defines the versioning scheme used to negotiate the IBC verison in // the connection handshake. type Version struct { // unique version identifier Identifier string `protobuf:"bytes,1,opt,name=identifier,proto3" json:"identifier,omitempty"` // list of features compatible with the specified identifier Features []string `protobuf:"bytes,2,rep,name=features,proto3" json:"features,omitempty"` }

Protocol versioning is important to establish, as different protocol versions may not be compatible, for example due to proofs being stored on a different path. There are three types of protocol version negotiation:

1. Default, no selection: only one protocol version is supported. This is default to propose.
2. With selection: two protocol versions can be proposed, such that the chain initiating OpenInit or OpenTry has a choice of which version to go with.
3. Impossible communication: a backwards incompatible IBC protocol version. For example, if an IBC module changes where it stores its proofs (proof paths), errors result. There are no plans to upgrade to a backwards incompatible IBC protocol version.

As discussed previously, the opening handshake protocol allows each chain to verify the identifier used to reference the connection on the other chain, enabling modules on each chain to reason about the reference of the other chain.

With regards to the connection on the other side, the connection protobufs (opens new window) contains the Counterparty definition:

Copy // Counterparty defines the counterparty chain associated with a connection end. message Counterparty { option (gogoproto.goproto_getters) = false; // identifies the client on the counterparty chain associated with a given // connection. string client_id = 1 [(gogoproto.moretags) = "yaml:\"client_id\""]; // identifies the connection end on the counterparty chain associated with a // given connection. string connection_id = 2 [(gogoproto.moretags) = "yaml:\"connection_id\""]; // commitment merkle prefix of the counterparty chain. ibc.core.commitment.v1.MerklePrefix prefix = 3 [(gogoproto.nullable) = false]; }

In this definition, connection-id is used as a key to map and retrieve connections associated with a certain client from the store.

prefix is used by the clients to construct merkle prefix paths which are then used to verify proofs.

Connection handshakes and states

Establishing an IBC connection (for example, between chain A and chain B) requires four handshakes:

1. OpenInit
2. OpenTry
3. OpenAck
4. OpenConfirm

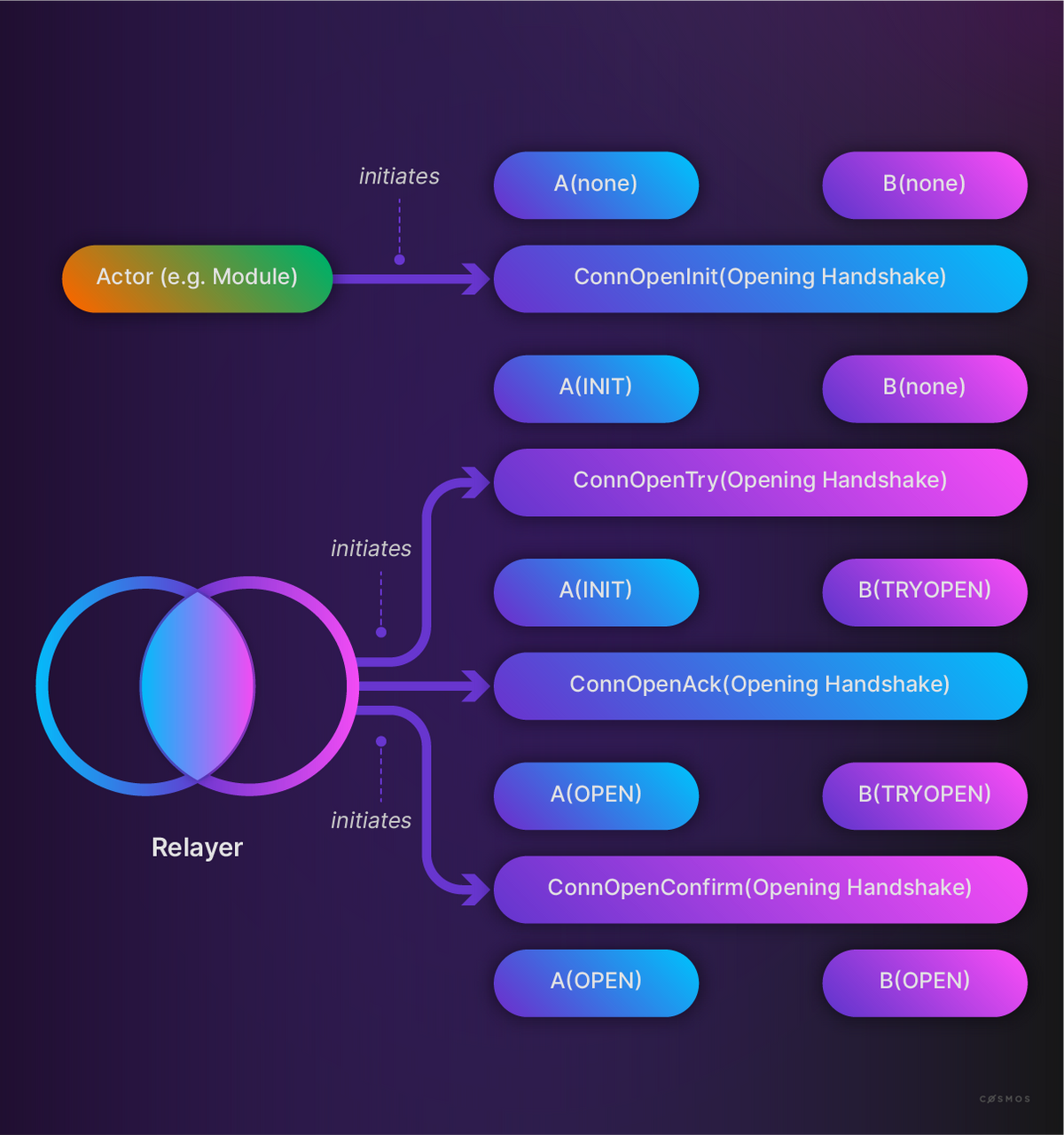

A high level overview of a successful four-way handshake is as follows:

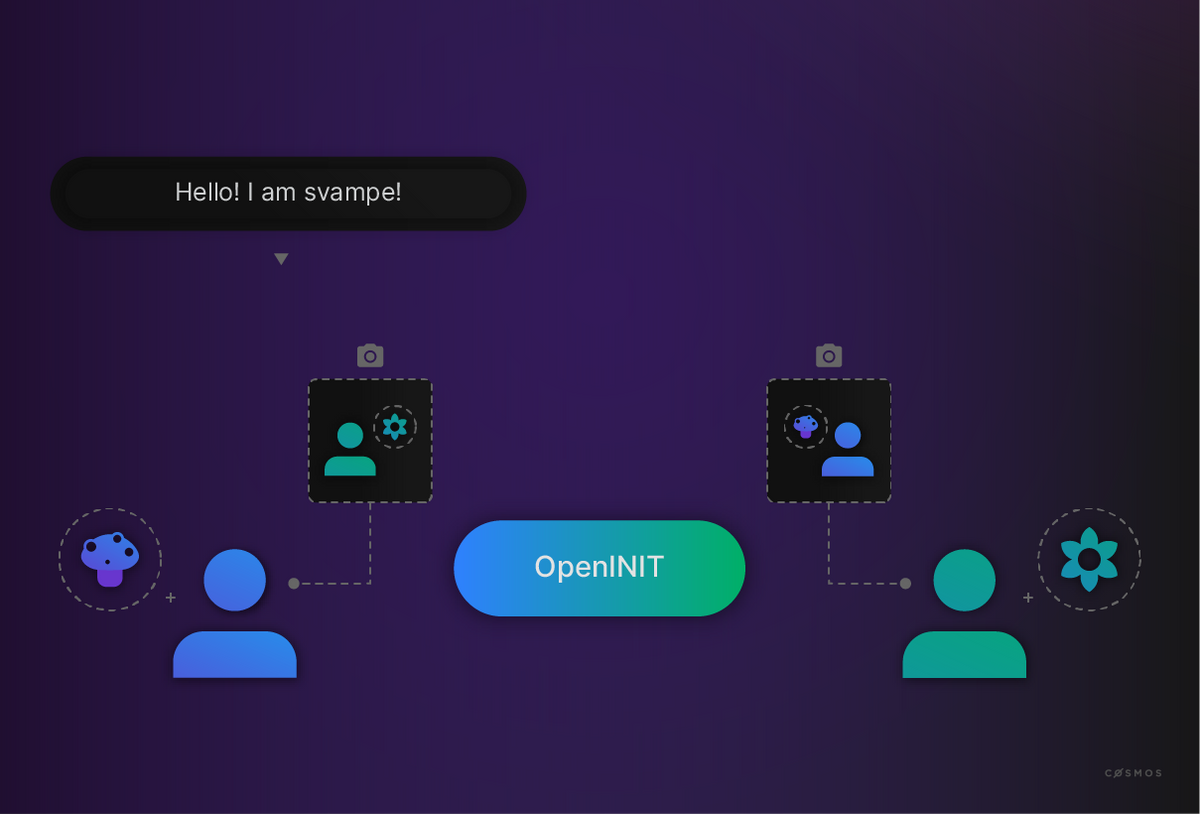

Handshake 1 - OpenInit

OpenInit initializes any connection which may occur, while still necessitating agreement from both sides. It is like an identifying announcement from the IBC module on chain A which is submitted by a relayer. The relayer should also submit an UpdateClient with chain A as the source chain before this handshake. UpdateClient updates the client on the initializing chain A with the latest consensus state of chain B.

The initiation of this handshake from chain A updates its connection state to INIT.

OpenInit proposes a protocol version to be used for the IBC connection. A relayer-submitted OpenInit which contains a protocol version that is not supported by chain A will be expected to fail.

The reference implementation for the connection handshake is found in the IBC module repository (opens new window). Examine ConnOpenInit:

Copy func (k Keeper) ConnOpenInit( ctx sdk.Context, clientID string, counterparty types.Counterparty, // counterpartyPrefix, counterpartyClientIdentifier version *types.Version, delayPeriod uint64, ) (string, error) { ... // connection defines chain A's ConnectionEnd connectionID := k.GenerateConnectionIdentifier(ctx) connection := types.NewConnectionEnd(types.INIT, clientID, counterparty, types.ExportedVersionsToProto(versions), delayPeriod) k.SetConnection(ctx, connectionID, connection) if err := k.addConnectionToClient(ctx, clientID, connectionID); err != nil { return "", err } k.Logger(ctx).Info("connection state updated", "connection-id", connectionID, "previous-state", "NONE", "new-state", "INIT") defer func() { telemetry.IncrCounter(1, "ibc", "connection", "open-init") }() EmitConnectionOpenInitEvent(ctx, connectionID, clientID, counterparty) return connectionID, nil }

This function creates a unique connectionID. It adds the connection to a list of connections associated with a specific client.

It creates a new ConnectionEnd:

Copy connection := types.NewConnectionEnd(types.INIT, clientID, counterparty, types.ExportedVersionsToProto(versions), delayPeriod) k.SetConnection(ctx, connectionID, connection) // ConnectionEnd defines a stateful object on a chain connected to another separate one. // NOTE: there must only be 2 defined ConnectionEnds to establish // a connection between two chains, so the connections are mapped and stored as `ConnectionEnd` on the respective chains. message ConnectionEnd { option (gogoproto.goproto_getters) = false; // client associated with this connection. string client_id = 1 [(gogoproto.moretags) = "yaml:\"client_id\""]; // IBC version which can be utilised to determine encodings or protocols for // channels or packets utilising this connection. repeated Version versions = 2; // current state of the connection end. State state = 3; // counterparty chain associated with this connection. Counterparty counterparty = 4 [(gogoproto.nullable) = false]; // delay period that must pass before a consensus state can be used for // packet-verification NOTE: delay period logic is only implemented by some // clients. uint64 delay_period = 5 [(gogoproto.moretags) = "yaml:\"delay_period\""]; }

ConnOpenInit is triggered by the relayer, which constructs the message and sends it to the SDK that uses the msg_server.go (opens new window) previously seen to call ConnOpenInit:

Copy // ConnectionOpenInit defines a rpc handler method for MsgConnectionOpenInit. func (k Keeper) ConnectionOpenInit(goCtx context.Context, msg *connectiontypes.MsgConnectionOpenInit) (*connectiontypes.MsgConnectionOpenInitResponse, error) { ctx := sdk.UnwrapSDKContext(goCtx) if _, err := k.ConnectionKeeper.ConnOpenInit(ctx, msg.ClientId, msg.Counterparty, msg.Version, msg.DelayPeriod); err != nil { return nil, sdkerrors.Wrap(err, "connection handshake open init failed") } return &connectiontypes.MsgConnectionOpenInitResponse{}, nil }

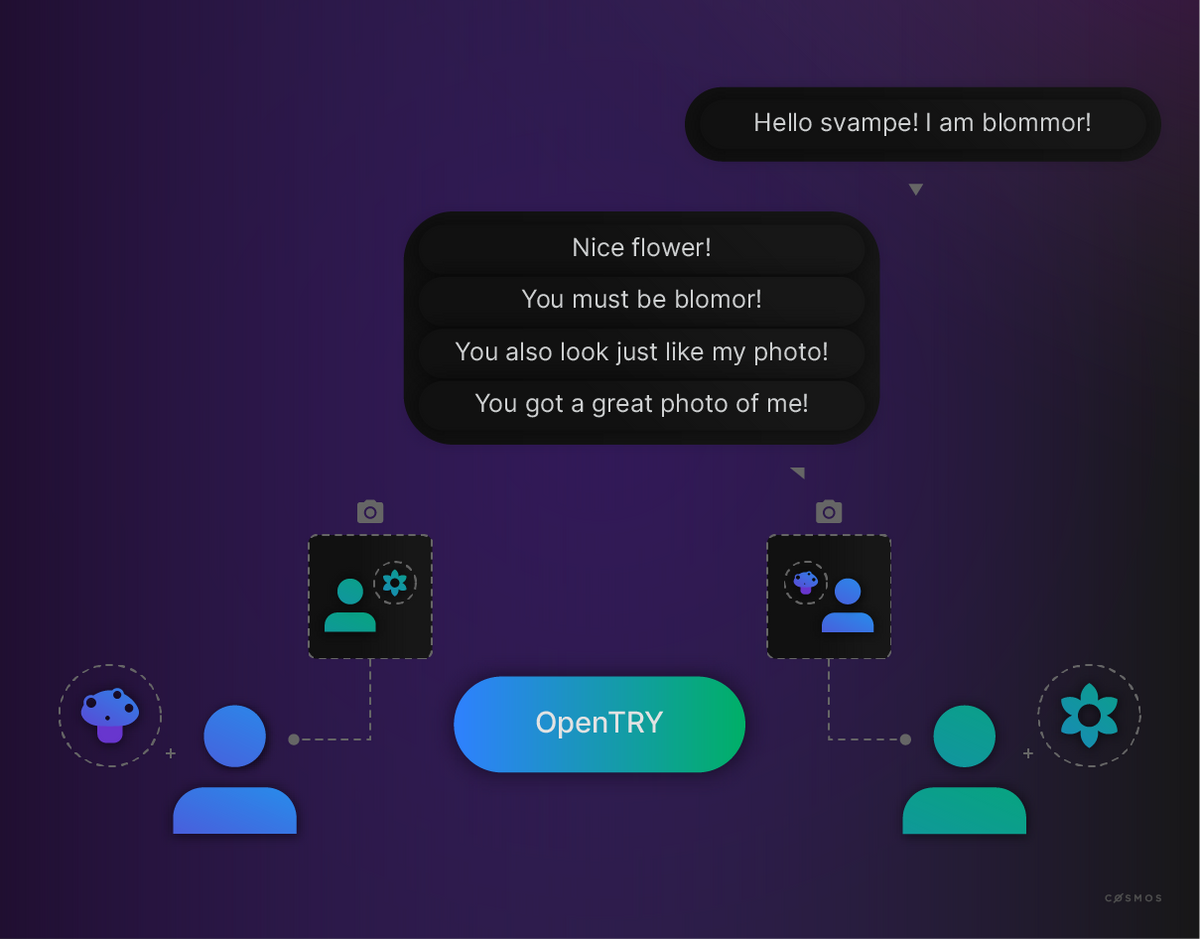

Handshake 2 - OpenTry

OpenInit is followed by an OpenTry response, in which chain B verifies the identity of chain A according to information that chain B has about chain A in its light client (the algorithm and the last snapshot of the consensus state containing the root hash of the latest height as well as the next validator set). It also responds to some of the information about its own identity in the OpenInit announcement from chain A.

The purpose of this step of the handshake is double verification: not only for chain B to verify that chain A is the expected counterparty identity, but also to verify that the counterparty has accurate information about chain B's identity. The relayer also submits two UpdateClients with chain A and chain B as source chains before this handshake. These update the light clients of both chain A and chain B in order to make sure that the state verifications in this step are successful.

The initiation of this handshake from chain B updates its connection state to TRY.

With regards to IBC protocol versioning, OpenTry either accepts the protocol version which has been proposed in OpenInit or proposes another protocol version from the versions available to chain A to be used for the IBC connection. A relayer-submitted OpenTry which contains an unsupported protocol version will be expected to fail.

The implementation of OpenTry is as follows:

Copy // ConnOpenTry relays notice of a connection attempt on chain A to chain B (this // code is executed on chain B). // // NOTE: // - Here chain A acts as the counterparty // - Identifiers are checked on msg validation func (k Keeper) ConnOpenTry( ctx sdk.Context, previousConnectionID string, // previousIdentifier counterparty types.Counterparty, // counterpartyConnectionIdentifier, counterpartyPrefix and counterpartyClientIdentifier delayPeriod uint64, clientID string, // clientID of chainA clientState exported.ClientState, // clientState that chain A has for chain B counterpartyVersions []exported.Version, // supported versions of chain A proofInit []byte, // proof that chain A stored connectionEnd in state (on ConnOpenInit) proofClient []byte, // proof that chain A stored a light client of chain B proofConsensus []byte, // proof that chain A stored chainB's consensus state at consensus height proofHeight exported.Height, // height at which relayer constructs proof of A storing connectionEnd in state consensusHeight exported.Height, // latest height of chain B which chain A has stored in its chain B client ) ...

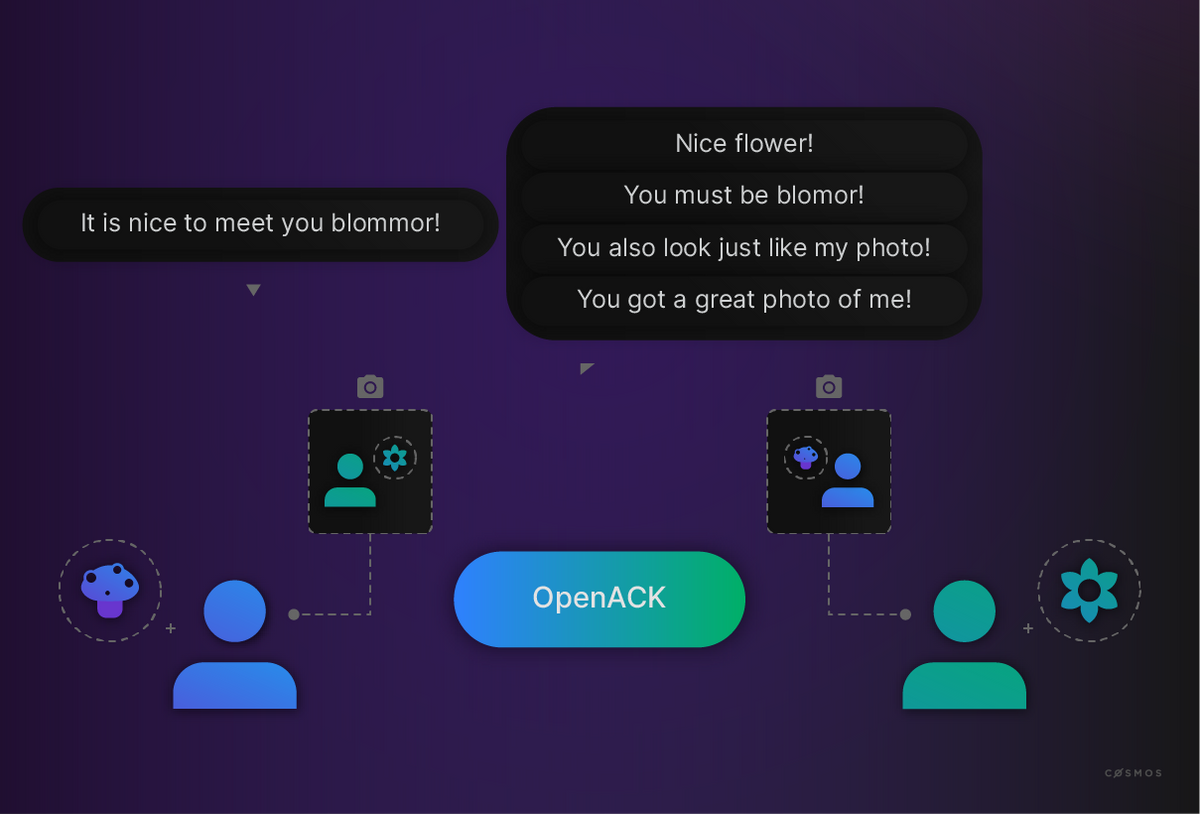

Handshake 3 - OpenAck

OpenAck is very similar to the functionality of OpenInit, except that the information verification now occurs for chain A. As in OpenTry, the relayer also submits two UpdateClients with chain A and chain B as source chains before this handshake. These update the light clients of both chain A and chain B, in order to make sure that the state verifications in this step are successful.

The initiation of this handshake from chain A updates its connection state to OPEN. It is important to note that the counterparty chain must have a TRY connection state in order for the handshake and connection state update to be successful.

With regards to version negotiation, OpenAck must confirm the protocol version which has been proposed in OpenTry. It ends the connection handshake process if the version is unwanted or unsupported.

The OpenAck code is very similar to OpenTry:

Copy func (k Keeper) ConnOpenAck( ctx sdk.Context, connectionID string, clientState exported.ClientState, // client state for chain A on chain B version *types.Version, // version that Chain B chose in ConnOpenTry counterpartyConnectionID string, proofTry []byte, // proof that connectionEnd was added to Chain B state in ConnOpenTry proofClient []byte, // proof of client state on chain B for chain A proofConsensus []byte, // proof that chain B has stored ConsensusState of chain A on its client proofHeight exported.Height, // height that relayer constructed proofTry consensusHeight exported.Height, // latest height of chain A that chain B has stored on its chain A client ) ...

Both functions do the same checks, except that OpenTry takes proofInit as a parameter, and OpenAck takes proofTry:

Copy // This function verifies that the snapshot we have of the counter-party chain looks like the counter-party chain, verifies the light client we have of the counter-party chain // Check that Chain A committed expectedConnectionEnd to its state if err := k.VerifyConnectionState( ctx, connection, proofHeight, proofTry, counterparty.ConnectionId, expectedConnection, ); err != nil { return "", err } // This function verifies that the snapshot the counter-party chain has of us looks like us, verifies our light client on the counter-party chain // Check that Chain A stored the clientState provided in the msg if err := k.VerifyClientState(ctx, connection, proofHeight, proofClient, clientState); err != nil { return "", err } // This function verifies that the snapshot the counter-party chain has of us looks like us, verifies our light client on the counter-party chain // Check that Chain A stored the correct ConsensusState of chain B at the given consensusHeight if err := k.VerifyClientConsensusState( ctx, connection, proofHeight, consensusHeight, proofConsensus, expectedConsensusState, ); err != nil { return "", err }

Therefore, each chain verifies the ConnectionState, the ClientState, and the ConsensusState of the other chain. Note that after this step the connection state on chain A updates from INIT to OPEN.

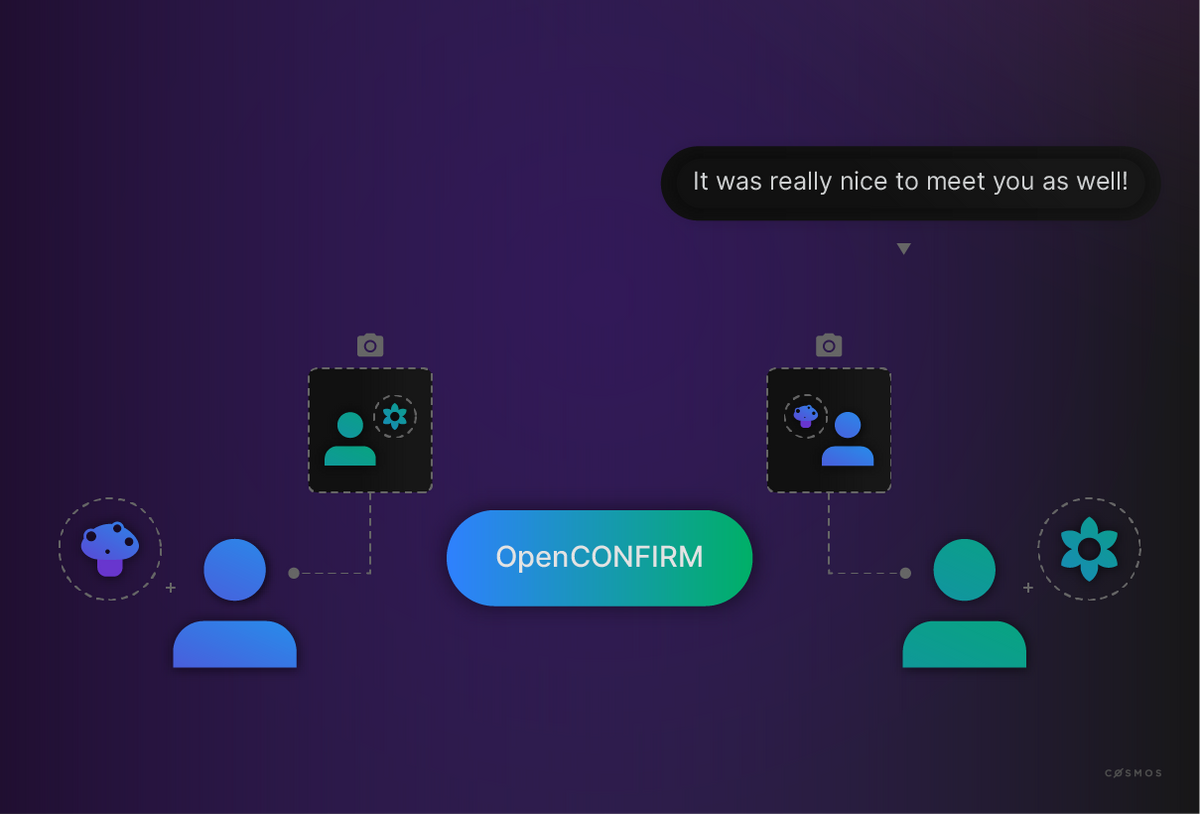

Handshake 4 - OpenConfirm

OpenConfirm is the final handshake, in which chain B confirms that both self-identification and counterparty identification were successful.

The conclusion of this handshake results in the successful establishing of an IBC connection:

Copy func (k Keeper) ConnOpenConfirm( ctx sdk.Context, connectionID string, proofAck []byte, // proof that connection opened on Chain A during ConnOpenAck proofHeight exported.Height, // height that relayer constructed proofAck )

The initiation of this handshake from chain B updates its connection state from TRY to OPEN. The counterparty chain must have an OPEN connection state in order for the handshake and connection state update to be successful.

The successful four-way handshake described establishes an IBC connection between the two chains. Now consider two related circumstances: simultaneous attempts by the chains to perform the same handshake, and attempts by an imposter to interfere.

Crossing hellos

"Crossing Hellos" refers to when both chains attempt the same handshake step at the same time.

If both chains submit OpenInit then OpenTry at same time, there should be no error. In this case, both sides still need to confirm with a successful OpenAck, but no OpenConfirm is required because both ConnectionEnds will update to an OPEN state.

An imposter

In fact this is not an issue. Any attempted OpenInit from an imposter will fail on OpenTry, because it will not contain valid proofs of Client/Connection/ConsensusState.
